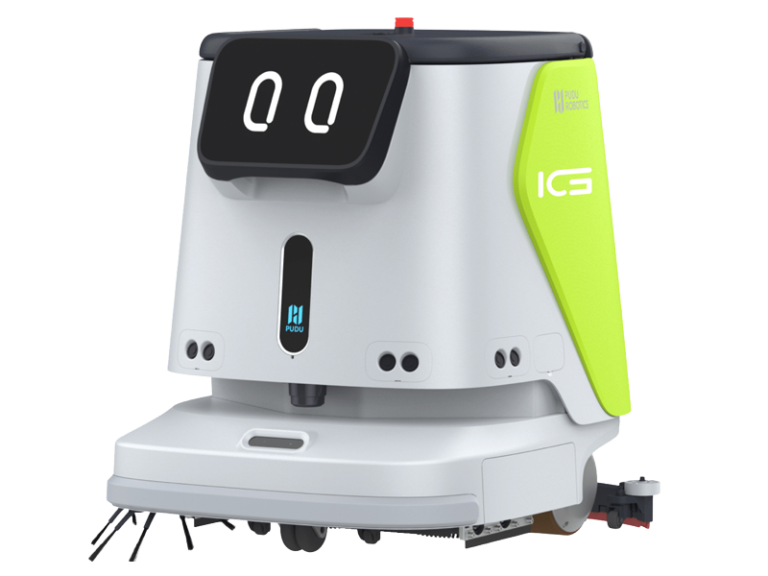

AUTONOMOUS CLEANING ROBOT WITH AI

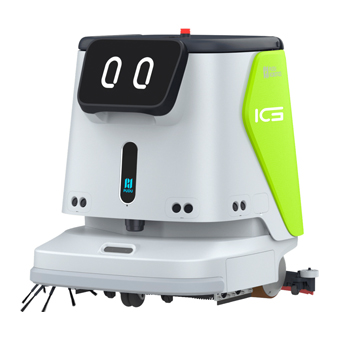

CC1 is a high-tech cleaning robot, specially created to efficiently clean large areas in commercial and industrial spaces.
Thanks to its cutting-edge technology and compact design, this automated device offers deep and uniform cleaning, which optimizes work times and reduces operating periods.
Its precision in removing waste significantly increases efficiency in maintenance tasks.
Versatile 4-in-1 cleaning
• Sweeping, scrubbing, vacuuming and mopping, four functions in one. A single piece of equipment can easily cover all cleaning needs.
• Two cleaning modes:
• Sweeping, vacuuming and mopping.
• Scrubbing.
• Modular components: Removing accessories is no longer a tedious task, but a quick and efficient one. Accessories (such as the side brush, rotating brush, squeegee and mop) can be assembled and disassembled in 1 minute.
TECHNICAL SHEET
| Power input | 100-240 V / 50 – 60 Hz |
| Charging time | <3 hours |
| Running time | Scrubbing 5h Silent scrubbing 9h |
| Minimum passing distance |
70 cm/ 27.56 inches |
| Tank capacity | Solution tank 15L Recovery tank 15L |
| Working environment |
Temperature: 1 to 40ºC |
| Cleaning width | 70 cm (27.56 inches) |
| Dimensions [L x W x H] |
629 x 552 x 695 mm 24.7 x 21.7 x 27.3 inches |
| Weight | 75 kg / 165.35 Ibs |
| Scope of application | Terrazzo, marble, tiles, epoxy resin, sandstone, artificial stone, short pile carpets etc |
- Industrial facilities.
- Sports facilities.
- Warehouses and logistics.
- Public transport.
- Commercial surfaces.
- Hospitality.
- Residential and office buildings.
- Healthcare complexes.
Versatile 4-in-1 cleaning
• Two cleaning modes:
• Sweeping, vacuuming and mopping.
• Scrubbing.

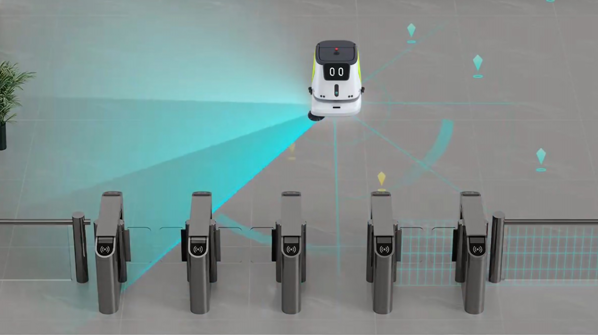

Navigation and automatic positioning
CC1 is based on the SLAM positioning system and is compatible with Visual SLAM positioning and navigationand Laser SLAM that improve efficiency incomplex applications.
Thanks to the multi-functional sensors, it can stop at any angle and move away as soon as it encounters an obstacle.
Automatic navigation and positioning.
Personalized implementation

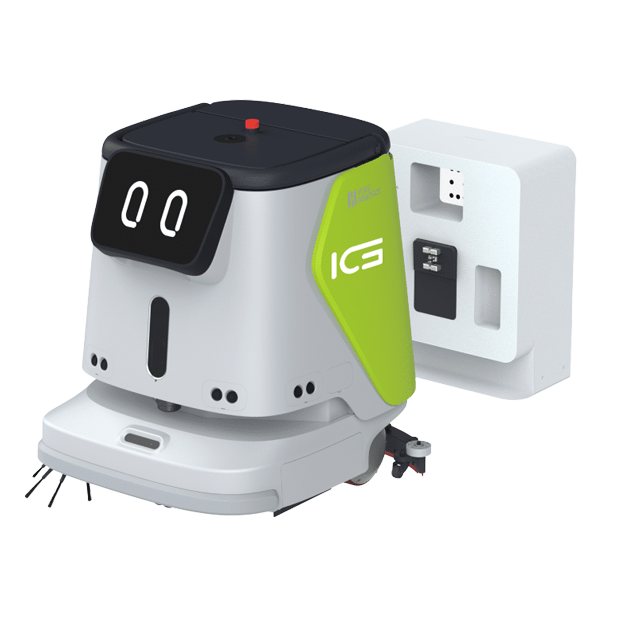

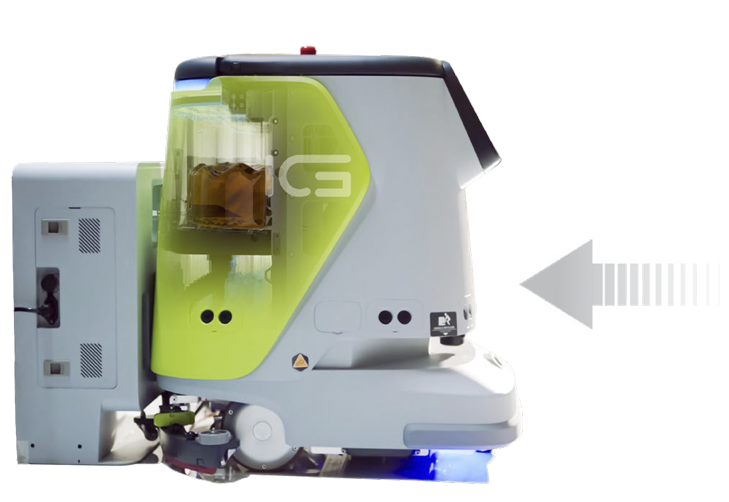

Automatic Water Filling and Emptying
CC1 has a clean water tank capacity of 15 L and a dirty water tank of 17 L with an exclusive workstation.
• Automatic filling and emptying of water at the workstation*.
• No manual intervention or worries.
*Workstation sold separately.

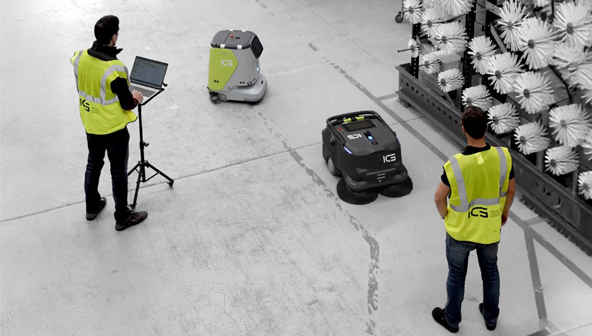

At ICS we carry out a detailed study of the work environment to adapt the robot’s operation to the specific needs of each client:
• We map the surfaces to be cleaned.
•We determine the optimal charging points.
• We establish intelligent missions adjusted to the client’s schedules and workflow.
• We configure exclusion zones (no-go zones) and define the robot’s behavior in each area.
• We adapt the cleaning plan to the daily operation of the center.
Integration and
Technological renting: total peace of mind
We offer a technological renting model that includes:
• MT1 sweeper
• The entire installation, integration and configuration process.
• Customer training at the facilities
• Optional: Annual technical maintenance and remote assistance plan.
With this model, you benefit from an advanced cleaning solution without worrying about the technical operation.

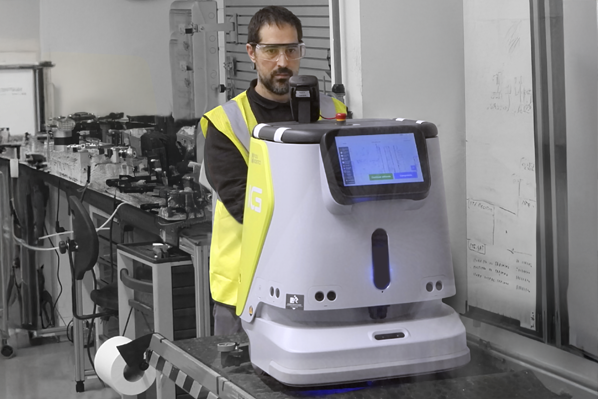

ICS TECHNICAL AND POST-SALES SERVICE
• Specialized technical assistance: Our team resolves any incident and accompanies you at all times.
• Guaranteed spare parts stock: We have all the necessary spare parts to keep your equipment always operational.
• Replacement equipment: We guarantee the continuity of the service in case of incidents (available upon request).
