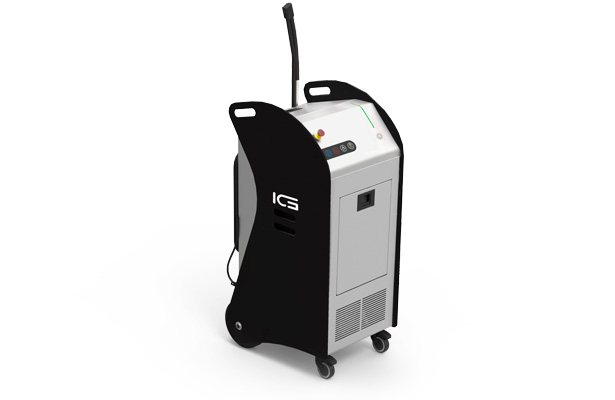

High-pressure foam and rinse generator
Effective Cleaning Equipment for Greasy Surfaces in Industrial Environments
FHP1 is a professional equipment designed for the deep cleaning of greasy surfaces in industrial environments. It projects a dense active foam that adheres to the dirt, allowing a prolonged action on the grease.
After a few minutes of action, a simple rinse is enough to leave the surfaces completely clean.
- Time savings in intensive cleaning tasks.
- Professional results with minimal effort.
- Reduced consumption of water and chemicals thanks to its localized action.
- Greater safety and hygiene in the work environment.
- Easy transport and use in different points of the installation.
TECHNICAL SHEET
| Power input: | 230V / 50Hz 110V / 60Hz |
| Pressure: | Min. pressure 1 bar Min. Pressure 14.5 psi |
| Maximum temperature: | 60ºC-140ºF |
| Hose length: | 10 m / 33 ft |
| Pump pressure: | High P. 150 Bar / 2175 psi High P. 103 Bar / 1500 psi |
| Power: | 2350W (230V / 50Hz 1500W (110V / 60Hz) |
| Current consumption: | 10,7A (230V / 50Hz) 21,4A (110V / 60Hz) |
| Sound level: | Less than 70 dB |
| Control panel: | Membrane keyboard |
| Material of the structure: | Stainless steel and HDPE |
| Noise level: | 80 dB |
| Dimensions [L x W x H] | 570 x 430 x 1040 mm / 22.5 x 17 x 41 inch |
| Empty weight: | 55 kg / 121 lb |
• Dense and adherent foam: Guarantees maximum efficiency even on vertical or hard-to-reach surfaces.
• High pressure: The integrated pump allows a powerful projection, ideal for covering large areas quickly.
• Professional foaming lance: Precision and reach for a homogeneous application.
• Degreaser tank: Integrated compartment to house the cleaning chemical.
• Versatile and portable: Suitable for indoors and outdoors. Easily connects to the electrical and water network.
• Multi-sector applications: Food, industry, logistics, maintenance, etc.
• Ergonomic and functional design: Comfortable to use, reduces time and improves results.
INCLUDED ACCESSORIES
ADJUSTABLE LANCE
Adjustable lance in foam injection angle and high-pressure rinsing.
HIGH PRESSURE LIQUID HOSE
8 meters.
HANDLE
High pressure straight handle.

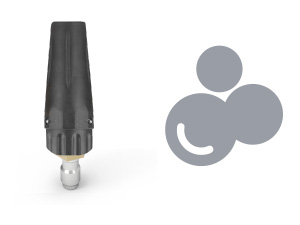

FOAMING NOZZLE
Foaming nozzle for working with the manual lance.

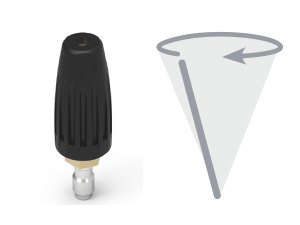

ROTARY NOZZLE
Rotary concentrated jet nozzle for high-pressure rinsing.

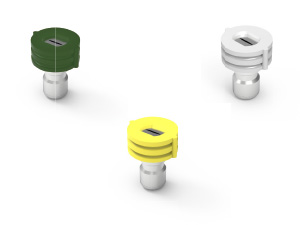

RINSING NOZZLES
High-pressure rinsing nozzles with a diffusion angle of 40º, 25º and 15º.
CONSUMABLES
COMEGRAS
Ultra-concentrated degreaser.
